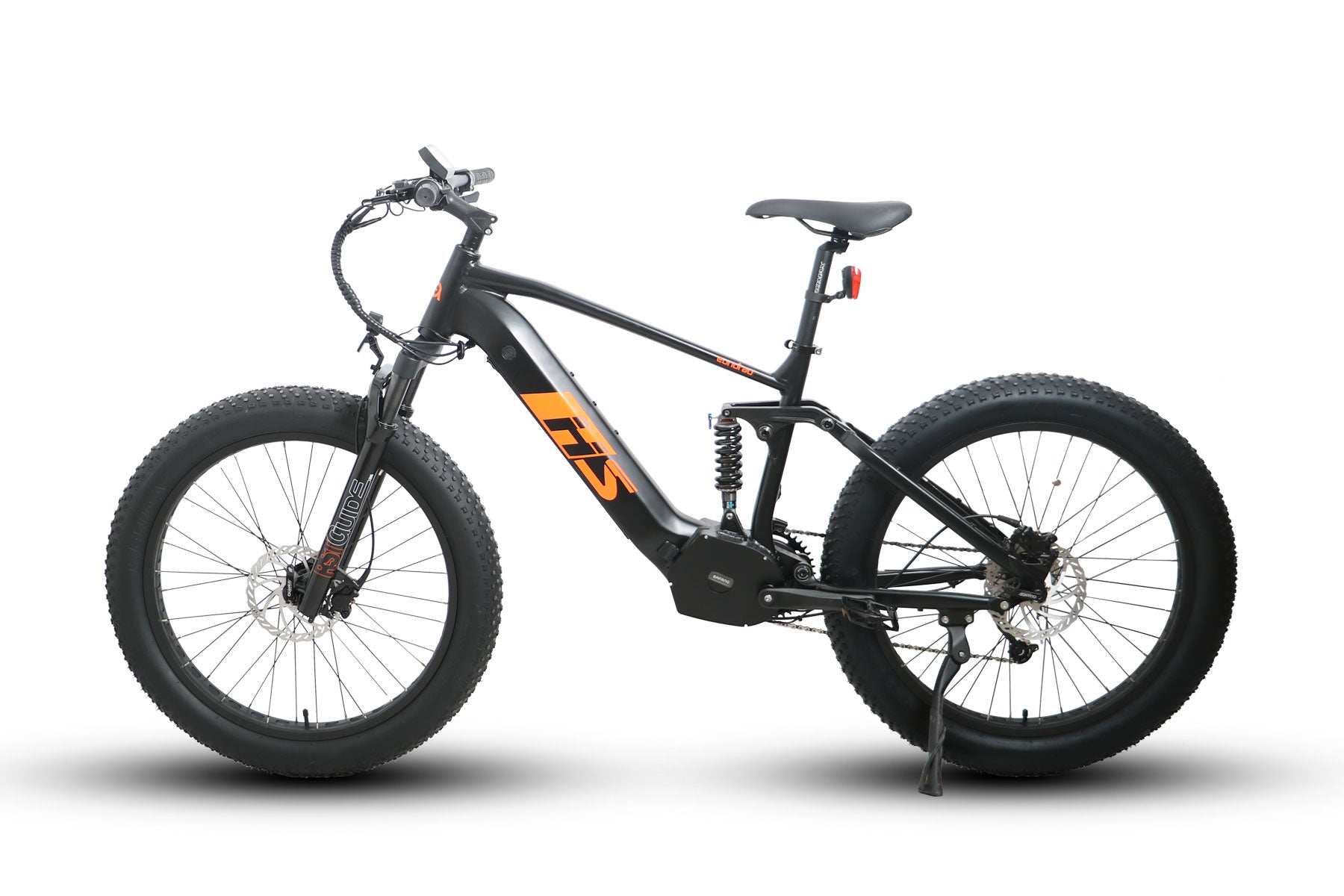

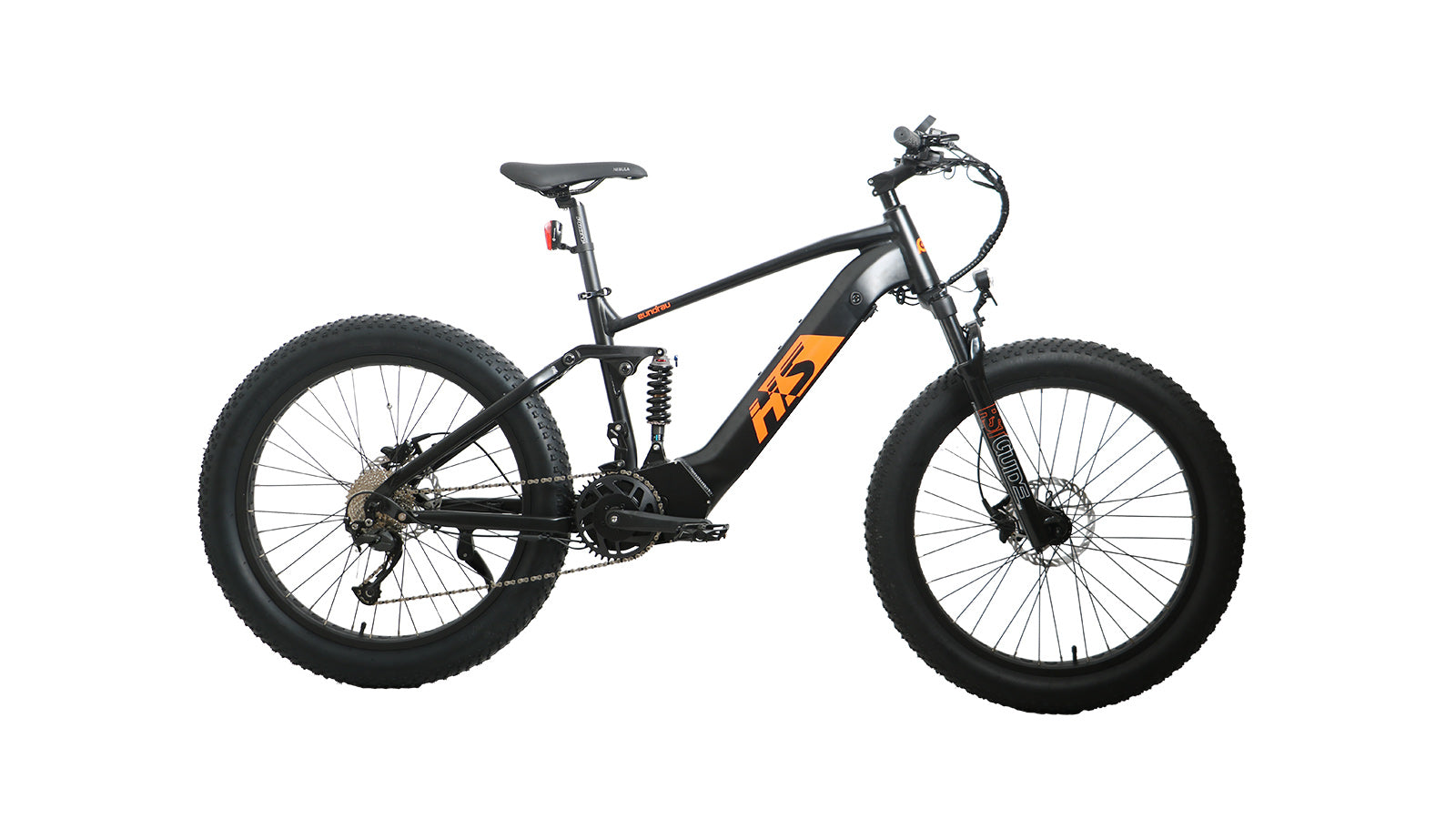

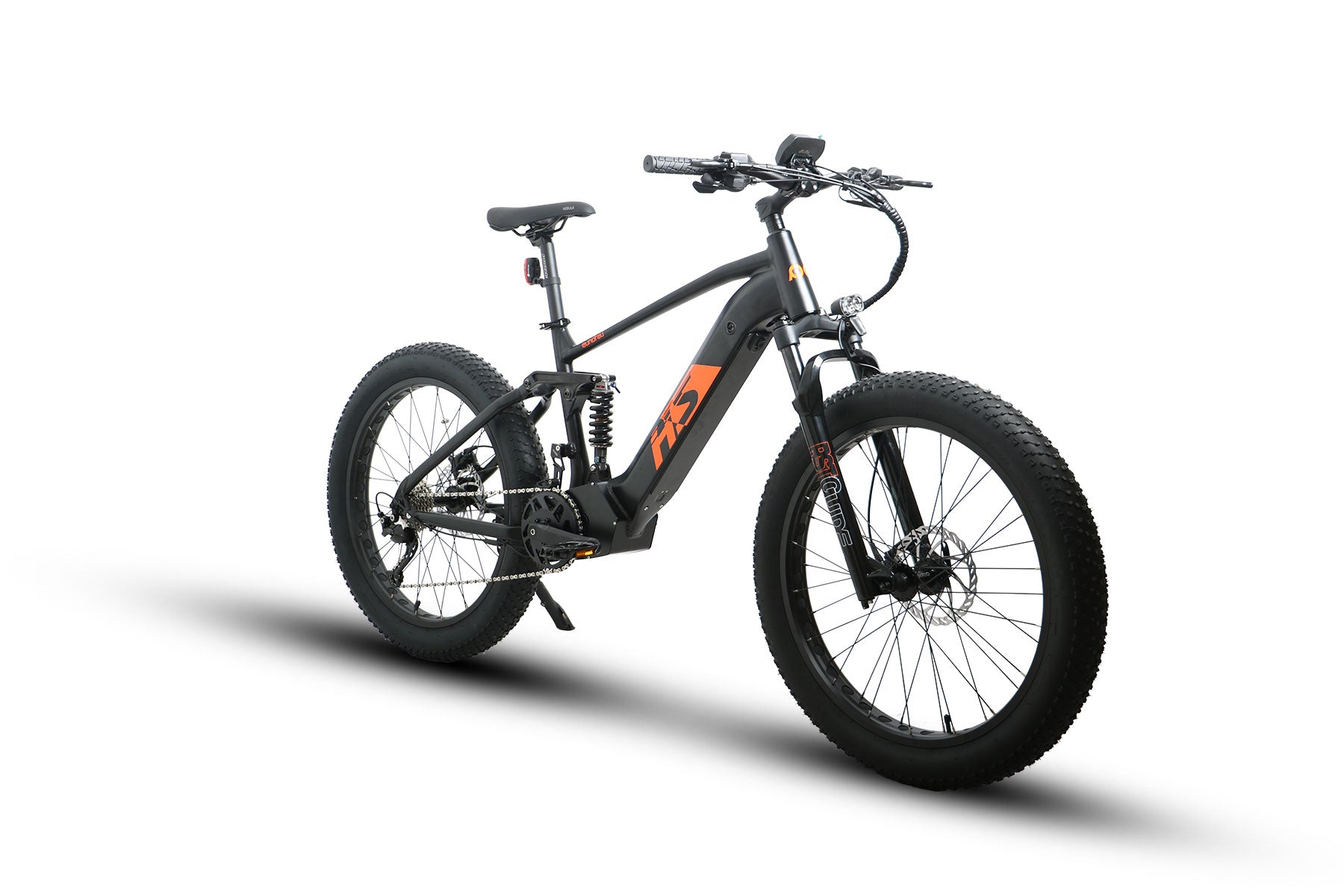

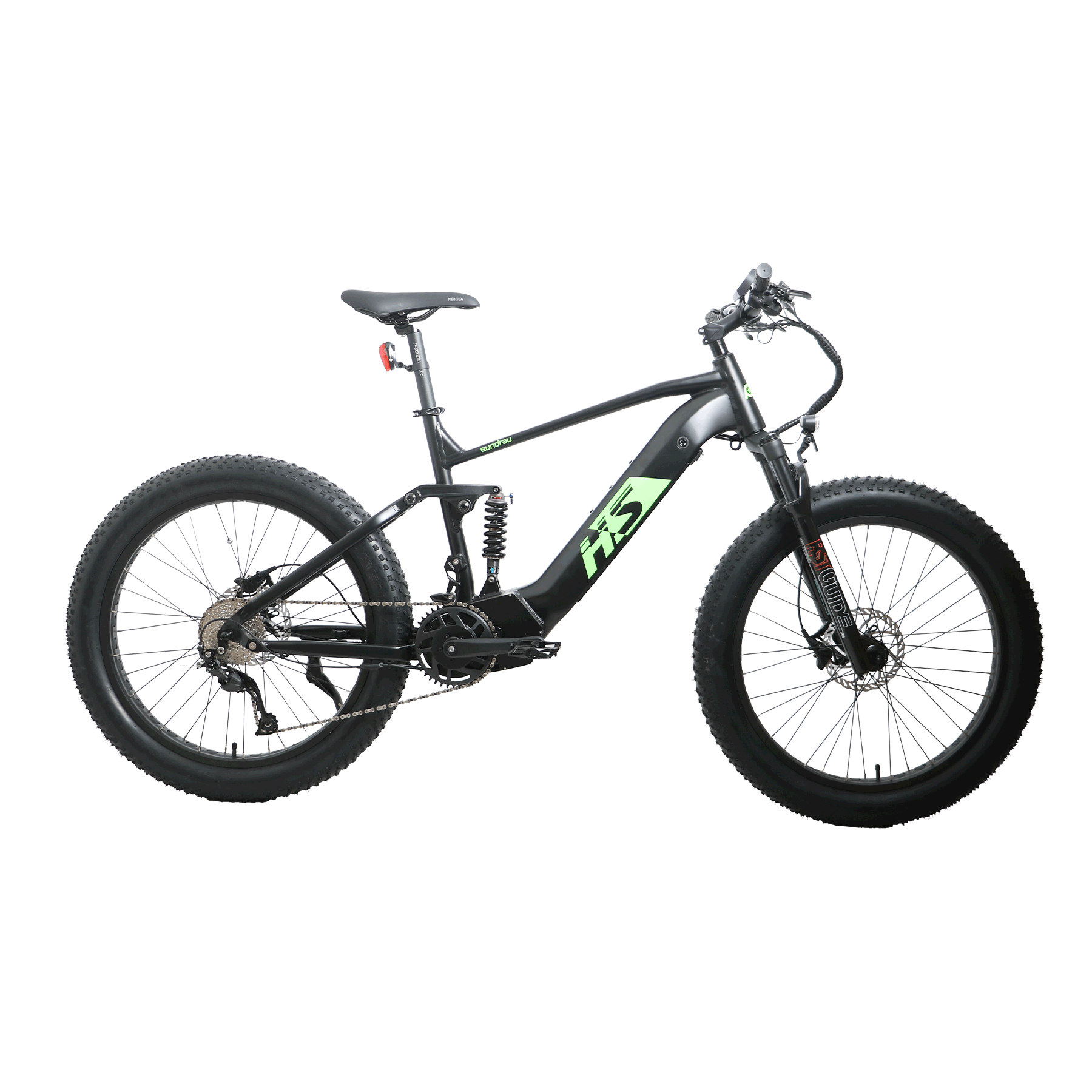

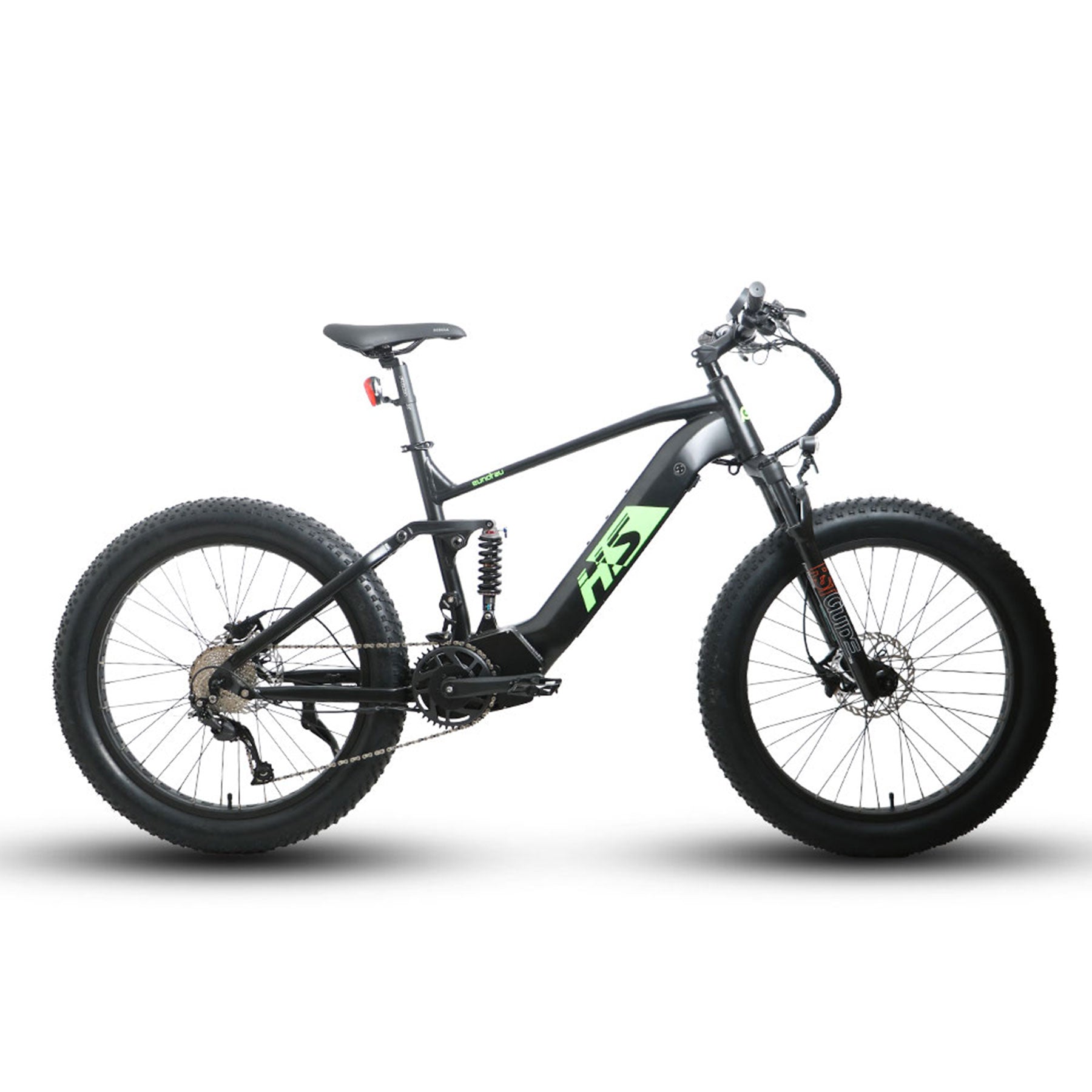

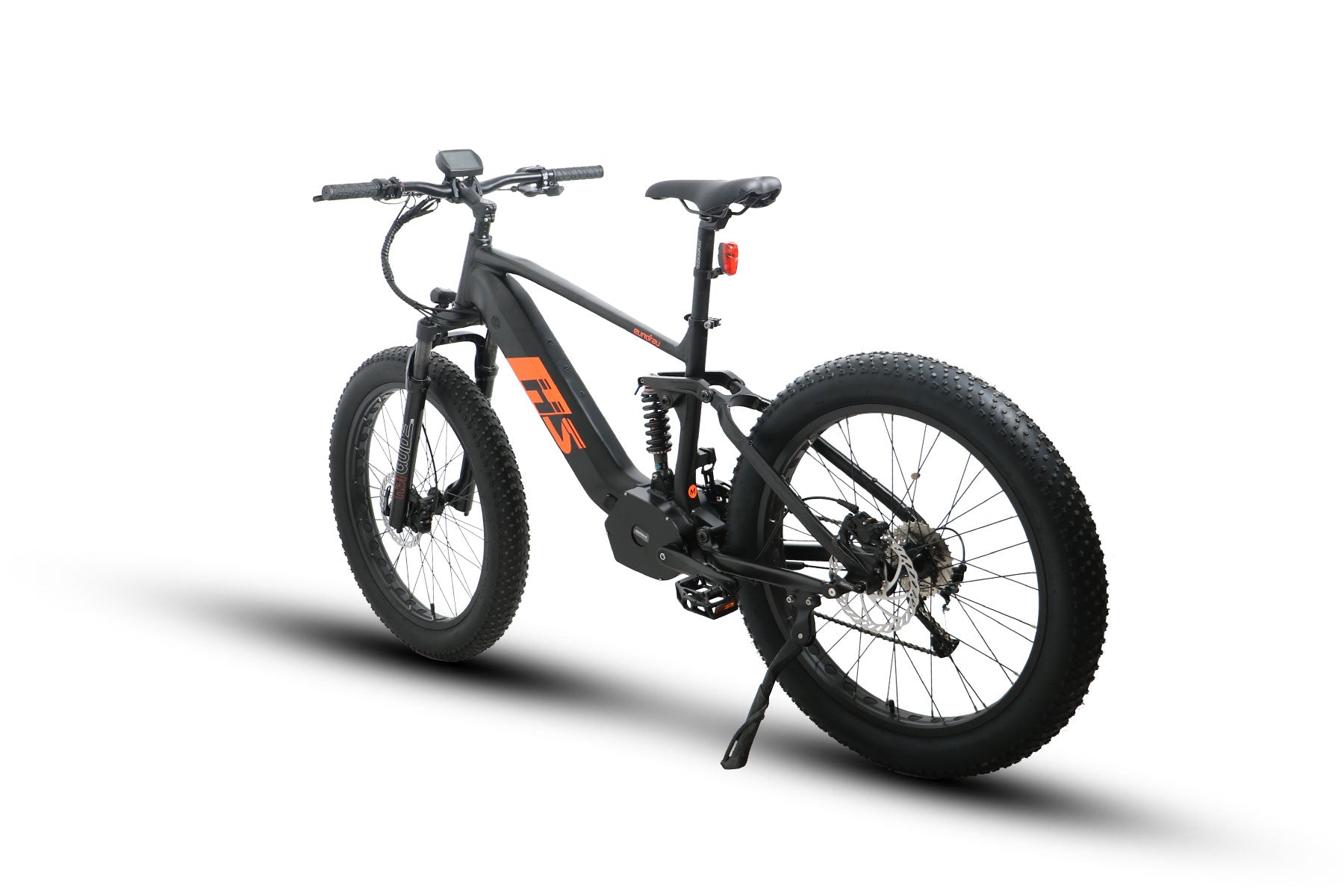

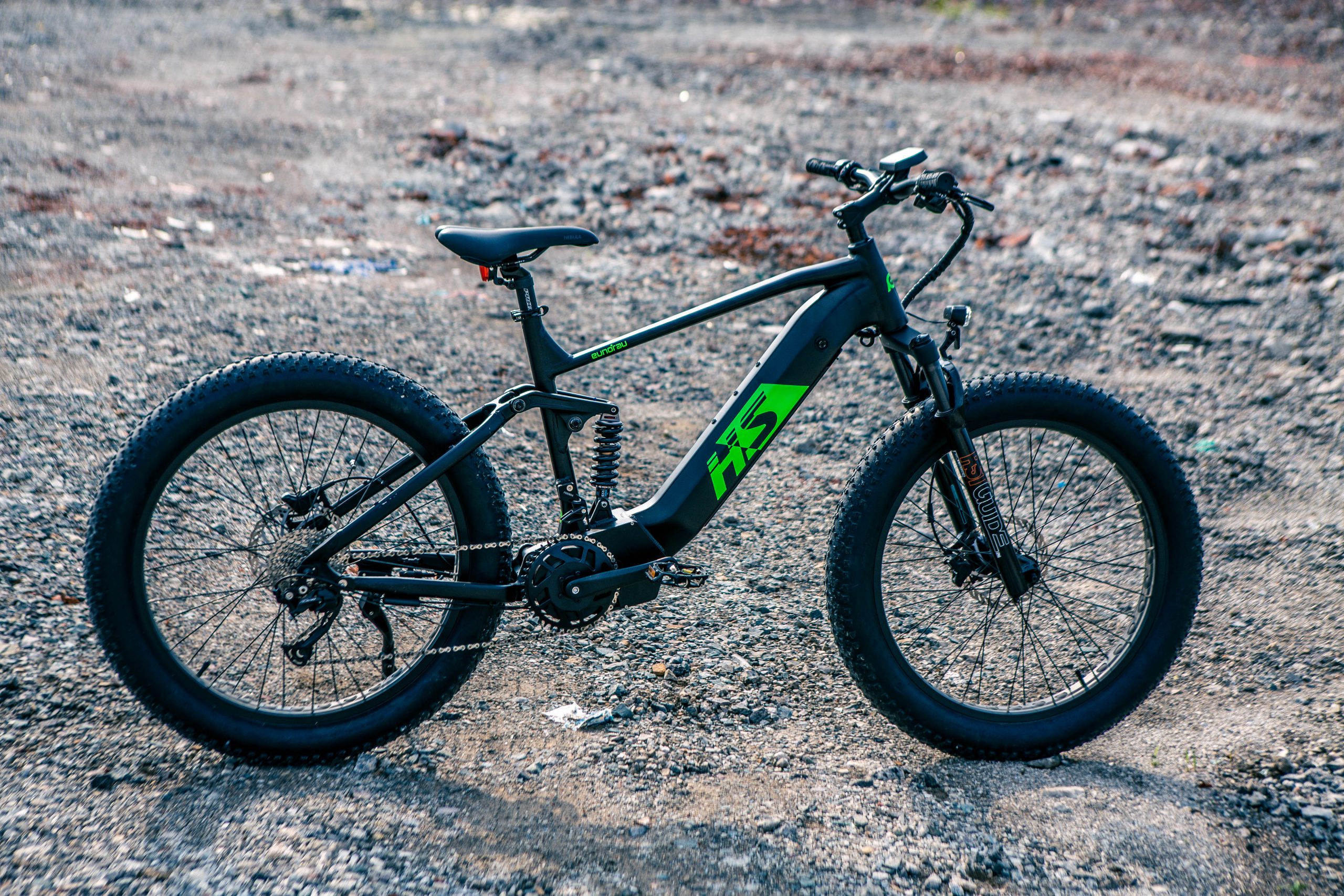

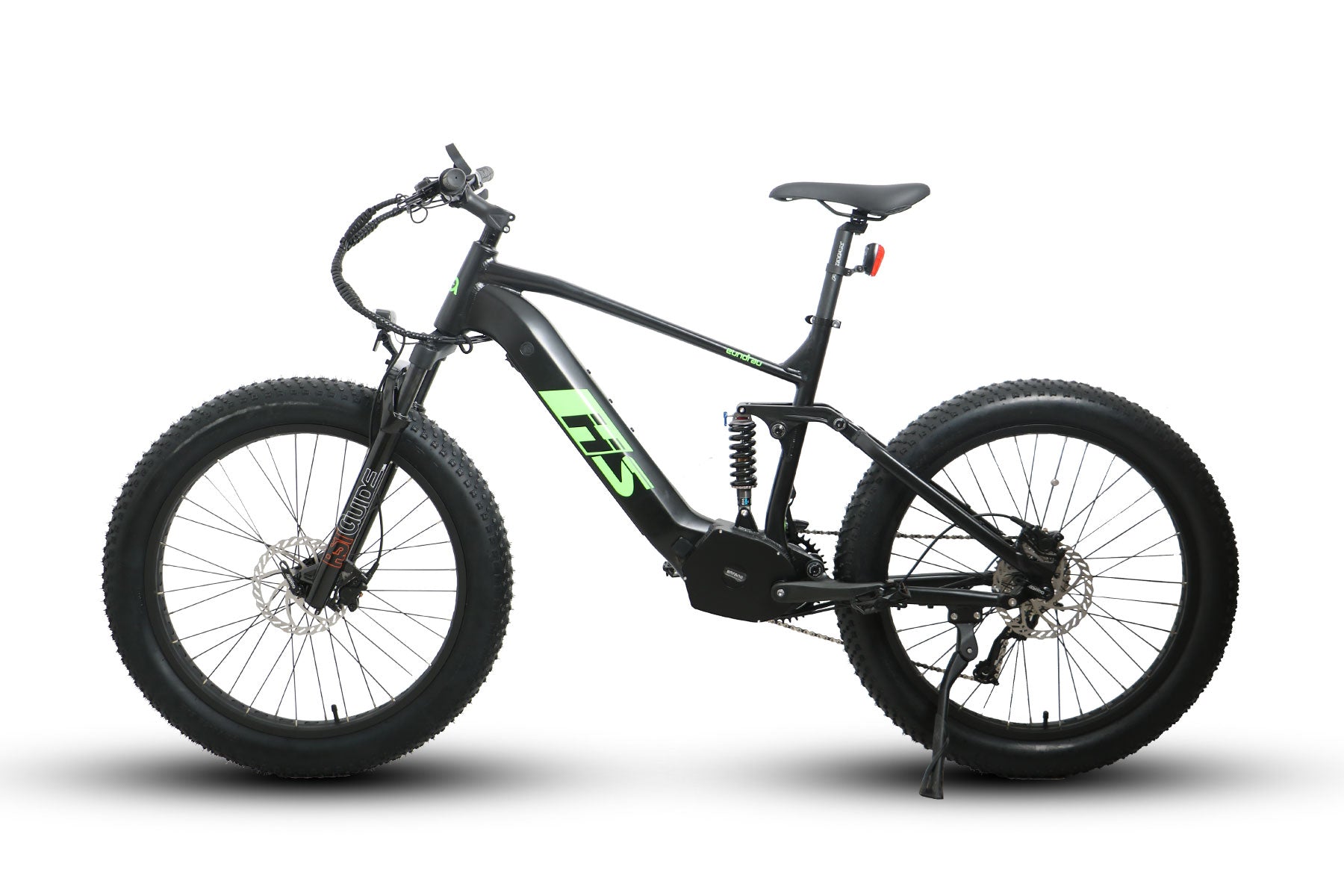

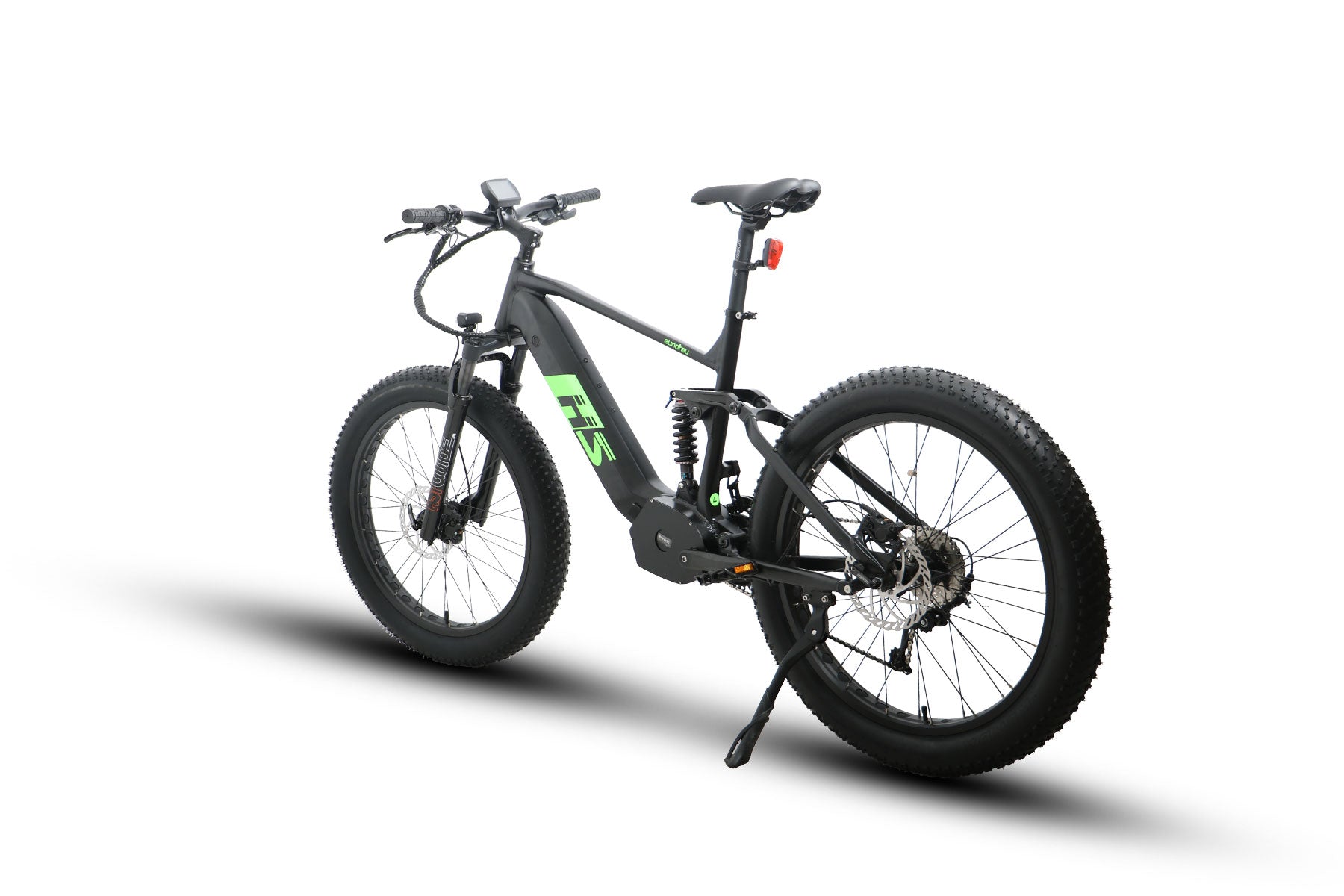

The 26” Fat Tire Model FAT-HS 1000W E-Bike Specifications

MOTOR: 48V1000W BAFANG M615 mid motor with Cadence Sensor and 160 N.m torque

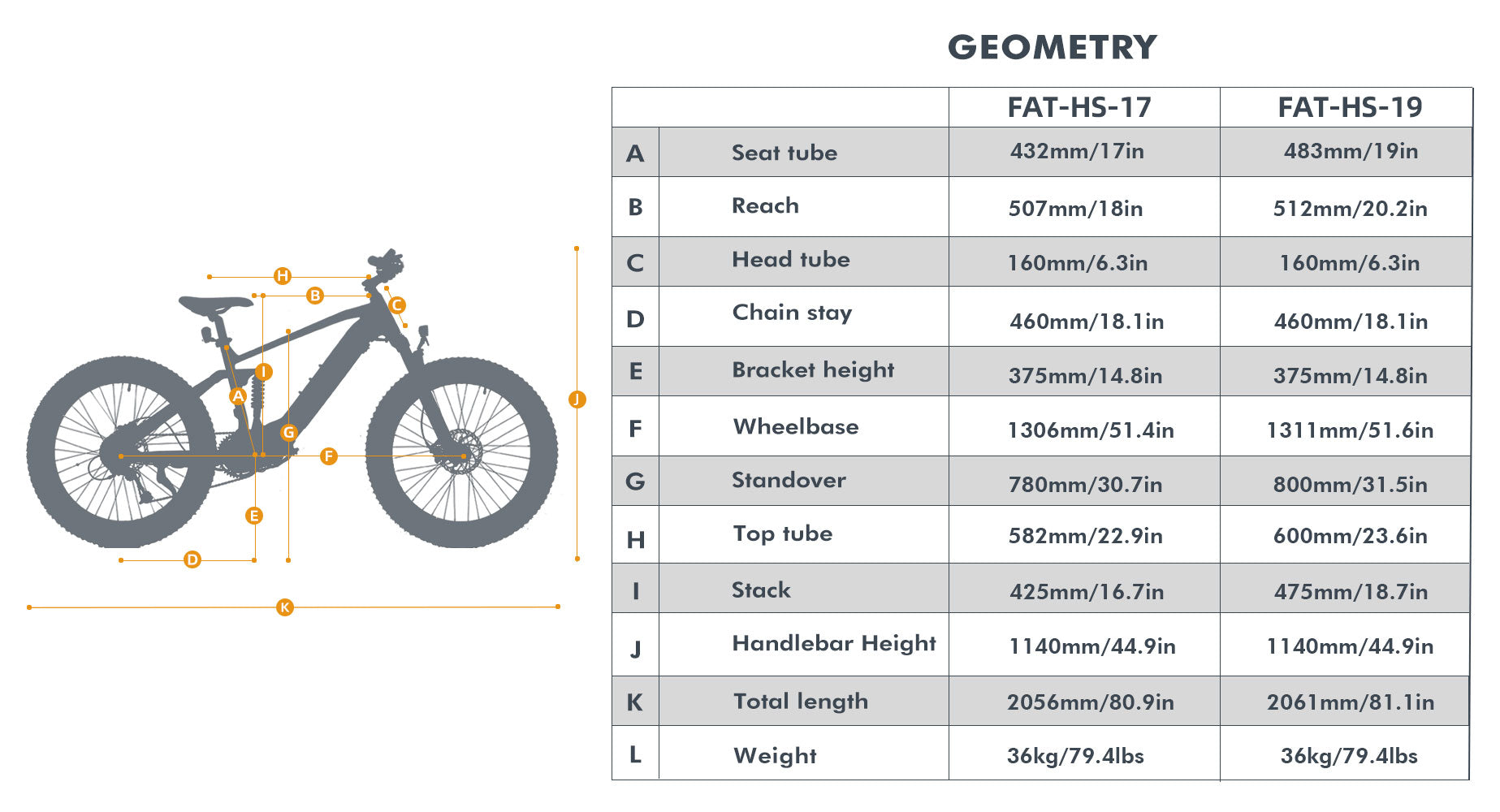

FRAME: Aluminum alloy 17/19inch+Front&Rear Suspension

FORK:  RST GUIDE 75mm Travel

SHOCK: KS-388L,190mm

BATTERY RANGE: 80 Miles (48V/17Ah SAMSUNG Cells+ Second Battery 14Ah/17Ah)

BATTERY CHARGING TIME: 4 – 6 hours

BATTERY TYPE: Lithium-Ion

BATTERY CAPACITY: 48V/15Ah SAMSUNG Cells+Optional Second Battery (Max17Ah)

BOX DIMENSIONS:  (cm) 156 L x 32.5 W x 88H

THROTTLE: Thumb Throttle

DISPLAY: CDC6 LCD Display

HEADLIGHT:  Front LED Headlight

TAILLIGHT:  YES

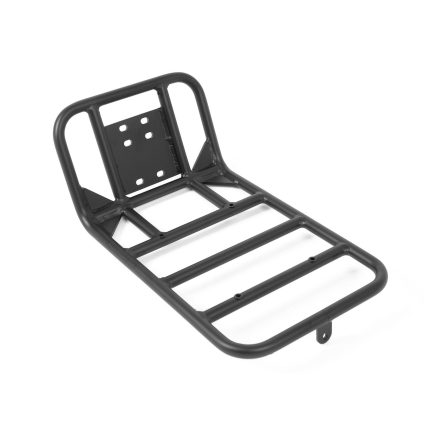

REAR RACK: Optional

Fender: Optional

RIMS: 26 inch Black Alloy

SPOKES: Stainless Steel

TIRES: Kenda Krusade Sport Tires 26″ x 4.0″ with K-Shield Protection

CASSETTE: SHIMANO (Or SUNRACE RDM91) 9-Speed Freewheel

SHIFTER: SHIMANO（Or SUNRACE DLM900R9) 9-Speed

CHAINRING: 42T 7075 CNC chain-wheel crank

BRAKES: EUNORAU design Hydraulic disc Brakes 180mm with Motor Cut-Off Sensor in Brake Handles

HANDLEBAR: Adjustable Stem for Comfort – Matte Black

SADDLE:   Comfortable Saddle

PEDALS: High-Quality Nylon Pedals

MANUAL: INCLUDED

TOOL:  INCLUDED
